Ring & Pinion Gear Installation in Sacramento
Gear setup is the job that separates mechanics. A ring and pinion that is five thousandths off in pinion depth will drive fine out of the driveway and then howl, heat up and eventually shear teeth. There is no way to eyeball it — you set it with a dial indicator and marking compound, or you are guessing with the customer's money.
I install ring and pinion sets in Dana 30, Dana 35 and Dana 44, Ford 8.8, GM 10-bolt and 14-bolt, and Toyota axles. Every setup gets a real process: pinion depth set with shims and checked against the drive and coast pattern, backlash set to spec with a dial indicator, and pinion bearing preload set with a crush sleeve or solid spacer and verified with an inch-pound torque wrench.

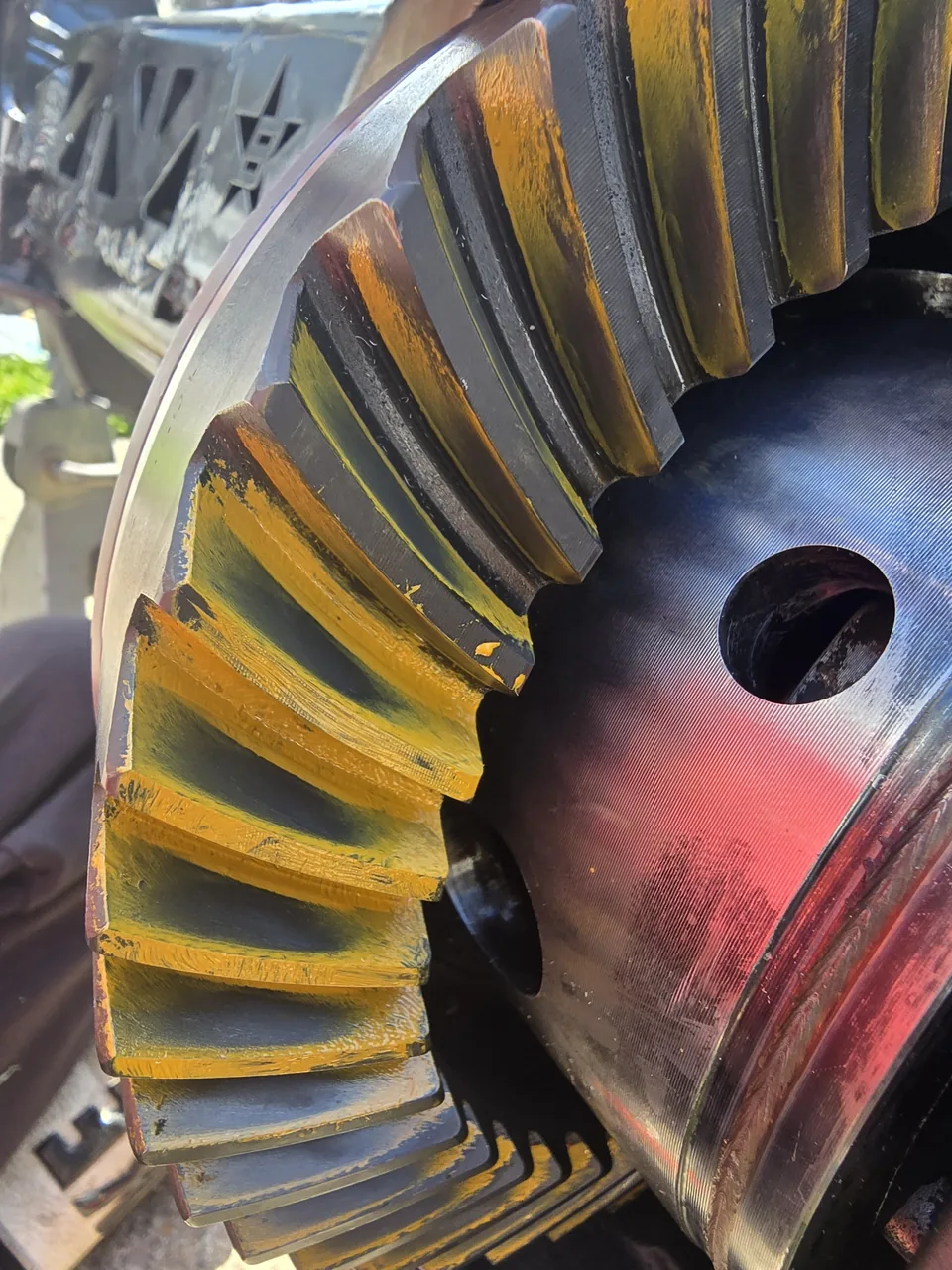

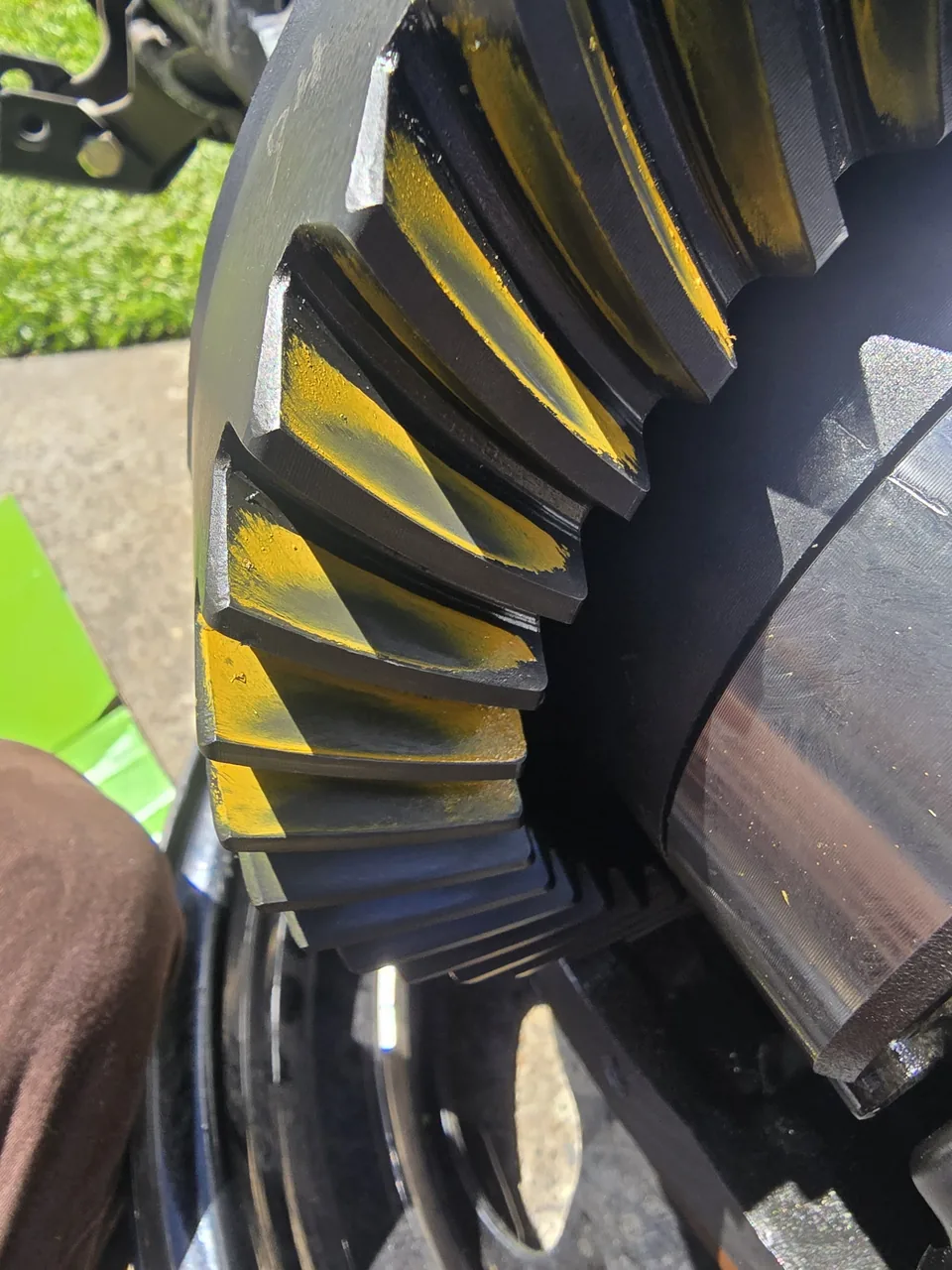

The pattern photos on this site are not decoration. That yellow marking compound is how depth gets verified before the axle goes back together — a centered drive pattern with correct backlash is the difference between a gear set that lasts the life of the truck and one that whines at you on the freeway.
If you have gone up in tire size, regearing is usually what makes the vehicle drivable again. 35s on stock 3.73s will leave a Jeep hunting for gears on every grade out of the valley; 4.56 or 4.88 puts the engine back in its powerband and stops you cooking the transmission on the way up Highway 50.
What the job includes
- Ring and pinion installation, front and rear axles
- Pinion depth set with shims and verified by gear pattern
- Backlash set to spec with a dial indicator

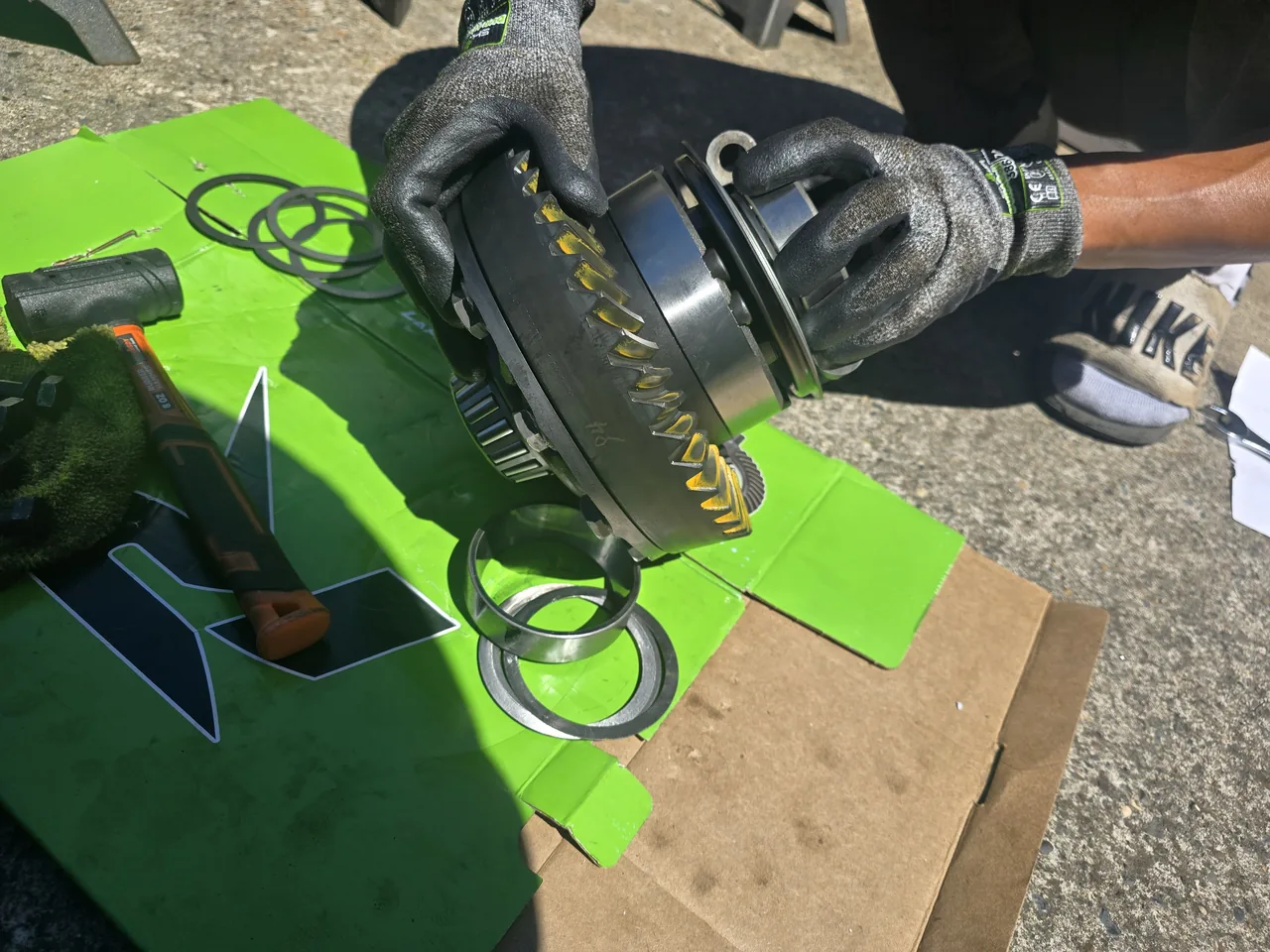

- Pinion bearing preload set and checked with an inch-pound torque wrench

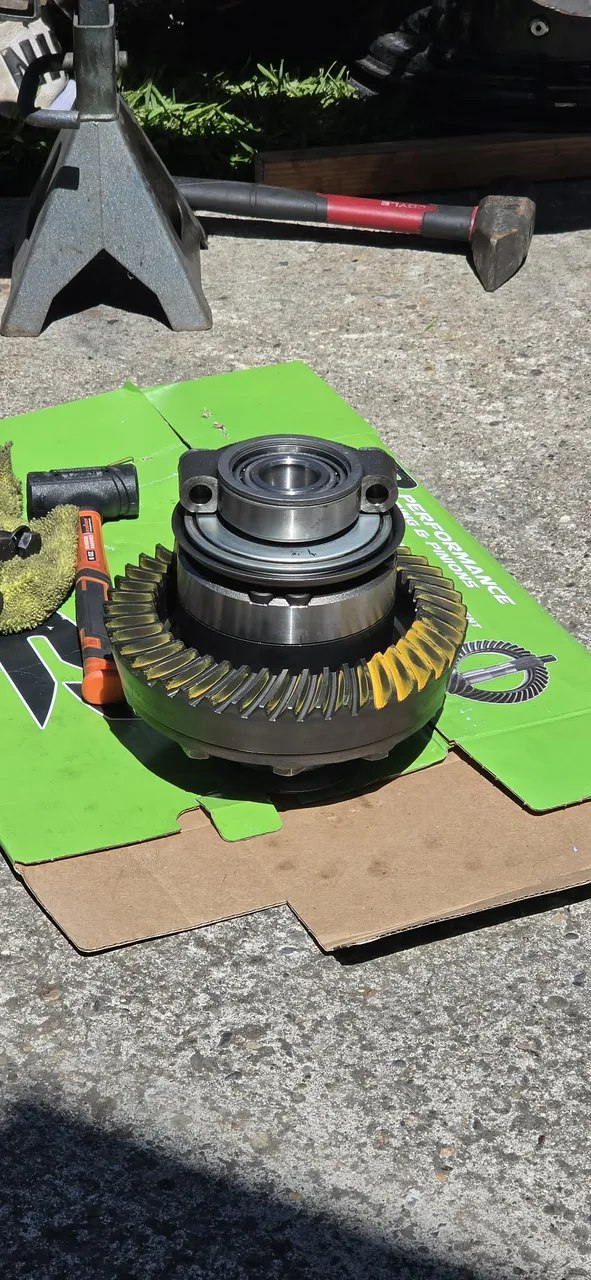

- Carrier bearings, pinion bearings and seals replaced
- Differential cover resealed and filled with the correct gear oil and friction modifier
Ring & Pinion Gear Installation — work I have done
Ring & Pinion Gear Installation questions
What gear ratio do I need for my tire size?
It depends on tire diameter, transmission and how you drive it. As a rough guide on a Jeep Wrangler: 33s want about 4.10, 35s want 4.56 to 4.88, 37s want 5.13. Tell me your tire size, axle and whether it is mostly freeway or mostly trail and I will give you a straight answer.
Do I have to regear both axles?
Yes, on any part-time or full-time 4x4. Front and rear must match or the transfer case and axles fight each other every time you engage four-wheel drive.
Can gear setup really be done outside a shop?
Yes — it is a precision job, not a heavy-equipment job. What it needs is a dial indicator, the right shims, a press for the pinion bearing, and patience. I bring all of it, and the pattern gets checked and reshimmed as many times as it takes.
Should I add a locker at the same time?
If you are considering one, do it now. The labour to open the diff and set up the carrier overlaps almost completely, so adding a locker during a regear costs far less than doing it as a separate job later.
